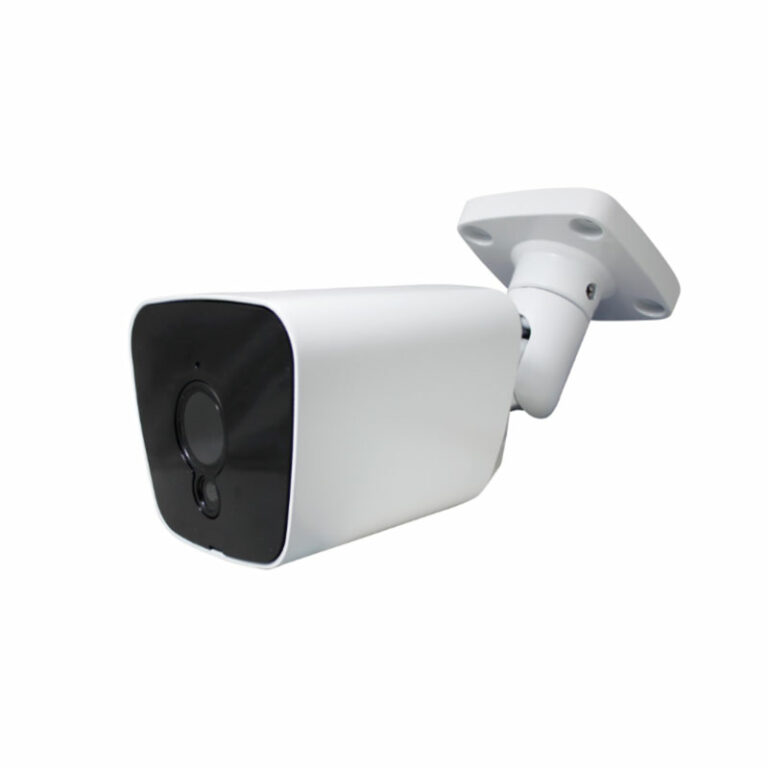

HD 4MP WiFi Camera CCTV Outdoor Fixedl Lens Wireless IP Camera
HD 4MP 5MP 8MP WiFi Camera CCTV Outdoor Fixed Lens Wireless IP Camera. With 4pcs Array IRs providing a 30m range, it ensures clear surveillance day and night. Supporting both Onvif & HK protocols, it offers seamless integration into various systems for versatile security solutions.
| Camera: | |||
| Model No | BK-POE14B4M | BK-POE14B5M | BK-POE14B8M |
| Chipset | T31X | T41LQ | T41NQ |
| Sensor | 1/2.7″, 4MP low illumination CMOS sensor | 1/2.7″, 5MP low illumination CMOS sensor | 1/2.7″, 8MP low illumination CMOS sensor |
| Lens | Standard 3.6mm lens, 2.8/6mm lens optional | ||
| Pixel | 2304*1296 | 2592*1904 | 3840*2160 |
| D-WDR | D-WDR (Off/Low/Middle/High) | ||
| D/N | Infrared | ||
| 3D DNR | Off/Low/Middle/High/Higher | ||
| IR Distance | 30 meters | ||
| Defog | Off/Low/Middle/High | ||
| IR Led | 4pcs Array IRs | ||
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | ||
| Image Setting | Brightness,contrast,sharpness,saturation,chroma | ||
| Humanoid Detection: | |||
| Detection Quantity | 5-10 person | ||
| Humanoid Size | Humanoid pixel≥40X40 | ||
| Max Detection Frame | 5fps/s | ||
| Track People | Support | ||
| Detection Mode | Support static and dynamic humanoid detection | ||
| Detection Method | Image detection during day or night time with lights or IR Leds | ||
| Detection Area | Appointed area, default full-screen | ||
| Upload Method | Upload it under private protocol | ||
| Trigger Method | Video trigger | ||
| Audio & Video Encoding: | |||
| Standard | S.265/H.265/H.264 | ||
| Encoding Feature | Main stream: 4MP(2560*1440)3MP(2304*1296)
2MP(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Main stream: 5MP(2592*1904)4MP(2560*1440)
3MP(2304*1296)2MP(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Main stream: 8MP(3840*2160)
5MP(2592*1904)4MP(2560*1440) 3MP(2304*1296)2MP(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
| Max Resolution | 4MP(2560*1440) | 5MP 2592*1904 | 8MP(3840*2160 |
| Video Code Rate | Fixed code rate,variable code rate(main stream:1024Kbps-8000kbps) | ||
| Video Type | Composited stream/video stream | ||
| Audio Standard | G.711u/ G.711A 64Kbps | ||
| Network Function: | |||
| Network protocol | TCP/IP，UDP，HTTP，HTTPS，DHCP、PPPoE、HTTP、HTTPS、RTSP、RTMP、DDNS、UPNP、FTP | ||
| Connection Protocol | Onvif, GB28181 (option) | ||
| Preview numbers simultaneously | 4 people | ||
| Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification | ||
| Motion Detection | Set detection area, can set multi-level sensitivity | ||
| Occlusion Alarm | Support 1 area | ||
| Privacy Mask | Support 4 areas | ||
| Schedule Linkage | Snapshot, email,alarm output | ||
| Event Linkage | Capture, send Email , Alarm output | ||
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm | ||
| Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional | ||
| Port: | |||
| Network Port | RJ45 10M/100M network self-adaptation | ||
| Audio | MIC Input | ||
| Amplifier | Built-in amplifier board | ||
| General: | |||
| Power Supply | DC12V /PoE (option) | ||
| Water proof | N/A | ||
| Working Temperature | -10°C ~ 50°C | ||
| Working Humidity | 0﹪~90﹪ | ||
