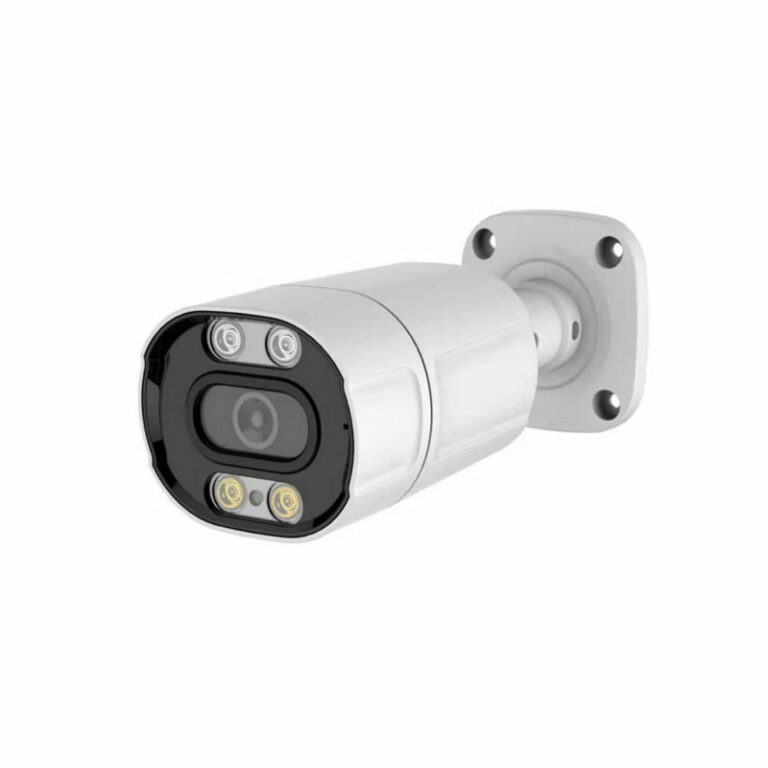

8MP Bullet POE Exterior Security Camera Outdoor IP CCTV System
Meet the 8MP Bullet POE Exterior Security Camera, your outdoor IP CCTV solution. With Power over Ethernet (POE) functionality, installation is a breeze. Enjoy crystal-clear surveillance footage in high definition, ensuring top-tier security for your outdoor premises.
Cámara: | |||
Número de modelo | BK-POE06B4M | BK-POE06B5M | BK-POE06B8M |
conjunto de chips | T31X | T41LQ | T41NQ |
Sensor | 1/2.7″, 4MP low illumination CMOS sensor | 1/2.7″, 5MP low illumination CMOS sensor | 1/2.7″, 8MP low illumination CMOS sensor |
Lente | Standard 3.6mm lens, 2.8/6mm lens optional | ||
Pixel | 2304*1296 | 2592*1904 | 3840*2160 |
D-WDR | D-WDR (Off/Low/Middle/High) | ||
D/N | Infrared | ||
3D DNR | Off/Low/Middle/High/Higher | ||
Distancia de infrarrojos | 30 metros | ||
Defog | Off/Low/Middle/High | ||
IR Led | 4pcs Array IRs | ||
Mirror | Off/horizontal mirror/vertical mirror/180° flip | ||
Image Setting | Brightness,contraste,sharpness,saturation,chroma | ||
Detección de humanoides: | |||
Detection Quantity | 5-10 person | ||
Humanoid Size | Humanoid pixel≥40X40 | ||
Max Detection Frame | 5fps/s | ||
Track People | Apoyo | ||
Detection Mode | Support static and dynamic humanoid detection | ||
Detection Method | Image detection during day or night time with lights or IR Leds | ||
Detection Area | Appointed area, default full-screen | ||
Upload Method | Upload it under private protocol | ||
Trigger Method | Video trigger | ||
Audio & Video Encoding: | |||
Standard | S.265/H.265/H.264 | ||
Encoding Feature | Main stream: 4diputado(2560*1440)3diputado(2304*1296)
2diputado(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Main stream: 5diputado(2592*1904)4diputado(2560*1440)
3diputado(2304*1296)2diputado(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Main stream: 8diputado(3840*2160)
5diputado(2592*1904)4diputado(2560*1440) 3diputado(2304*1296)2diputado(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Max Resolution | 4diputado(2560*1440) | 5diputado 2592*1904 | 8diputado(3840*2160 |
Video Code Rate | Fixed code rate,variable code rate(main stream:1024Kbps-8000kbps) | ||
Video Type | Composited stream/video stream | ||
Audio Standard | G.711u/G.711A 64Kbps | ||
Network Function: | |||
protocolo de red | TCP/IP,UDP,HTTP,HTTPS,DHCP、PPPoE、HTTP、HTTPS、RTSP、RTMP、DDNS、UPNP、ftp | ||
Connection Protocol | onvif, GB28181 (option) | ||
Preview numbers simultaneously | 4 people | ||
Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification | ||
Detección de movimiento | Set detection area, can set multi-level sensitivity | ||
Occlusion Alarm | Apoyo 1 area | ||
Privacy Mask | Apoyo 4 areas | ||
Schedule Linkage | Snapshot, email,alarm output | ||
Event Linkage | Capture, send Email , Alarm output | ||
Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm | ||
Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional | ||
Port: | |||
Puerto de red | RJ45 10M/100M network self-adaptation | ||
Audio | MIC Input | ||
Amplifier | Built-in amplifier board | ||
General: | |||
Fuente de alimentación | 12 V CC/PoE. (option) | ||
Water proof | N / A | ||
Temperatura de trabajo | -10°C ~ 50°C | ||
Humedad de trabajo | 0﹪~90﹪ |
