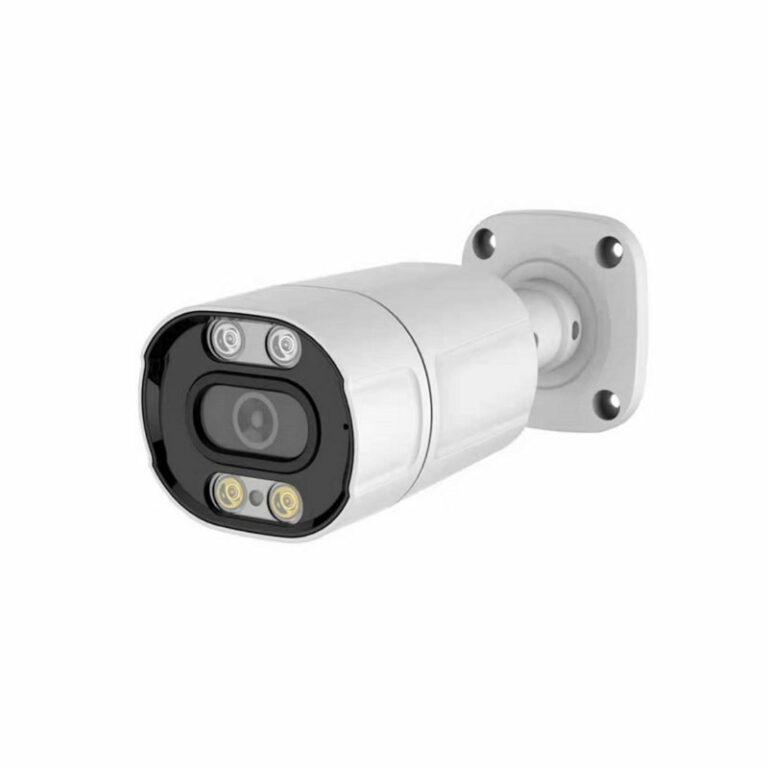

Full HD Hybrid 4-IN-1 AHD CVBS Camera with 2.8mm Wide Angle Lens
Immerse yourself in Full HD clarity with our AHD CVBS Camera featuring a 2.8mm wide-angle lens. Capture expansive views with precision. This camera is your gateway to high-definition surveillance with versatile installation options.
| Model No. | BK-AHD06B2MP | BK-AHD06B5MP | BK-AHD06B8MP |
| Sensor | 1/2.9” CMOS Sensor | 1/3” CMOS Sensor | |
| Lens | 3.6mm(2.8mm/6mm optional） | ||
| IR Lamp | 4 array lights | ||
| Pixel | 2MP | 5MP | 8MP |
| Resolution | 1920x1080P | 2560*1920 | 3840*2160 |
| Signal mode | AHD/TVI/CVI/CVBS | ||
| Standard | PAL/NTSC | ||
| UTC communication | support | ||
| HD switching | Support OSD/KEY/key code switching/single key/UTC mode switching | ||
| Menu function | OSD/Buttons | ||
| Language | English/Chinese/Korean/etc. | ||
| S/N | 2D | ||
| WDR | adaptive | ||
| Video Output | AHD/TVI/CVI/CVBS | ||
| Power Supply | DC12V-1A | ||
| Waterproof | IP66 | ||
| Material | Metal shell | ||
| Working environment | Temperature: ‘-20°C ~ 60°C, humidity: 10% ~ 90% (no condensation) | ||
