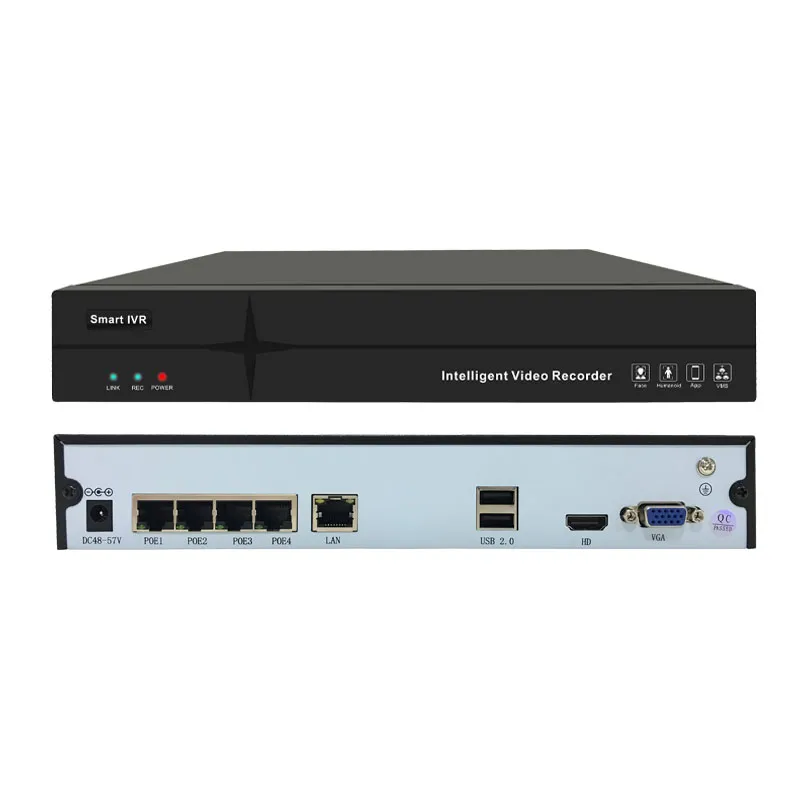

4 Channel Network Video Recorder – 4K Security POE NVR
This 4 Channel 8MP POE NVR supports 4K real-time recording with 1-channel 8MP playback. It’s compatible with multiple camera resolutions (8MP, 5MP, 3MP, 2MP, 1MP) and includes VGA, HDMI, USB, and audio output. Supports RTSP, GB28181 protocols, smart IPC features, up to 8TB HDD, remote viewing via P2P, and Android/iOS apps.
| Model No. | BK-POE868004 |
| System | Embedded LINUX design, pure hard decoding, watchdog, hard disk storage, HDMI HD display, IP network video access |
| Video Input | HD IPC input, support dual code stream access for each IPC, support auto search, auto add, auto recording, auto preview, and realize zero debugging |
| Incoming bandwidth 80Mbps; | |
| Video Output | 1CH HDMI output,1CH VGA output,Same origin as HDMI;resolution: |
| 3840×2160,1920×1080,1440×900,1280×1024,1280×800,1024×768 | |
| Support IMS preview , support APP preview | |
| Support split,1/2/4 CH realtime preview | |
| Recording resolution | Support 720P/960P/1080P/3MP/4MP/5MP/4K |
| Video Decoding Parameters | Support Smart265/H.265/H.264 decode |
| NVR playback 4 CH (1*4K) ; max support 4 CH playback on IMS | |
| Audio | G.711; support HDMI audio output,support audio output（3.5mm hole), support audio input(3.5mm hole), support audio/recording with audio preview and playback on IMS |
| Storage Management | 1 pcs SATA port, max support 16TB HDD |
| Support timing recording, alarm recording, timing and alarm recording; alarm recording includes (motion detection, alarm input, human detection, line-crossing detection, area intrusion, personnel linger, absent alarm, vehicle parking violation, and vehicle retrograde) | |
| Support the backup of external USB storage devices (such as ordinary USB flash disk and mobile hard disk) | |
| User Management | Max support 32 users |
| Network Port | 1 pcs RJ45 port, support 10/100M self-adaptive; support TCP/IP,IPv4, |
| DHCP,NTP,RTSP,ONVIF,P2P,SMTP, GB28181…etc network protocol; | |
| POE Port | 4CH, 10/100Mbps self-adaptive |
| Max support 15.4W(IEEE802.3af), max support 30W(IEEE802.3at ); | |
| POE output voltage DC48V; | |
| Peripheral Port | 2 pcs USB2.0 port(rear ); support mouse, USB upgrade, import and export |
| Alarm Port | No |
| Front Panel | Support 3 kinds of indicator light, including power, recording, data transfer |
| Buzzer | Support buzzer alarm |
| Function | Support preview/recording/transfer/remote service, support alert linkage, support IMS monitor software, support P2P cloud service |
| Working Temperature | -10℃～＋55℃ |
| Working Humidity | 10%～90% |
| Power Consumption | DC 52V/1.25A,≤65W power consumption (without HDD) |
| Size (mm) | Size 210*255*42mm(W×D×H), support wall installation |
| Weight（Ｋg) | N.W.: 1.2Kg; G.W: 1.3Kg（No HDD） |
| Package | 10 pcs/CTN 610mm×380mm×340mm; weight: 13KG |
