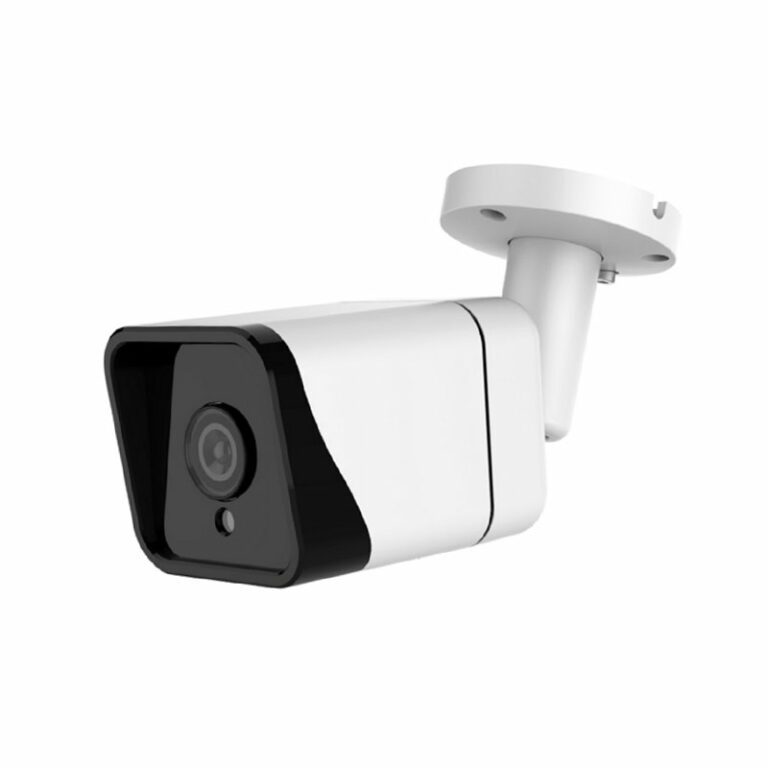

4K Ultra High Definition Bullet Camera with Powerful 164ft Night Vision
4K Ultra High Definition 2.8mm Fixed Lens POE IP Bullet Camera. Built for outdoor security with an IP66 rating, it withstands harsh weather conditions. With powerful 164ft night vision capabilities, rest assured your property is under vigilant surveillance day and night.
Cámara: | |||
Número de modelo | BK-POE11B4M | BK-POE11B5M | BK-POE11B8M |
conjunto de chips | T31X | T41LQ | T41NQ |
Sensor | 1/2.7″, 4MP low illumination CMOS sensor | 1/2.7″, 5MP low illumination CMOS sensor | 1/2.7″, 8MP low illumination CMOS sensor |
Lente | Standard 3.6mm lens, 2.8/6mm lens optional | ||
Pixel | 2304*1296 | 2592*1904 | 3840*2160 |
D-WDR | D-WDR (Off/Low/Middle/High) | ||
D/N | Infrared | ||
3D DNR | Off/Low/Middle/High/Higher | ||
Distancia de infrarrojos | 30 metros | ||
Defog | Off/Low/Middle/High | ||
IR Led | 36piezas LED IR | ||
Mirror | Off/horizontal mirror/vertical mirror/180° flip | ||
Image Setting | Brightness,contraste,sharpness,saturation,chroma | ||
Detección de humanoides: | |||
Detection Quantity | 5-10 person | ||
Humanoid Size | Humanoid pixel≥40X40 | ||
Max Detection Frame | 5fps/s | ||
Track People | Apoyo | ||
Detection Mode | Support static and dynamic humanoid detection | ||
Detection Method | Image detection during day or night time with lights or IR Leds | ||
Detection Area | Appointed area, default full-screen | ||
Upload Method | Upload it under private protocol | ||
Trigger Method | Video trigger | ||
Audio & Video Encoding: | |||
Standard | S.265/H.265/H.264 | ||
Encoding Feature | Main stream: 4diputado(2560*1440)3diputado(2304*1296)
2diputado(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Main stream: 5diputado(2592*1904)4diputado(2560*1440)
3diputado(2304*1296)2diputado(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Main stream: 8diputado(3840*2160)
5diputado(2592*1904)4diputado(2560*1440) 3diputado(2304*1296)2diputado(1920*1080) 25fps VGA(640*480)Q720P(640*360) |
Max Resolution | 4diputado(2560*1440) | 5diputado 2592*1904 | 8diputado(3840*2160 |
Video Code Rate | Fixed code rate,variable code rate(main stream:1024Kbps-8000kbps) | ||
Video Type | Composited stream/video stream | ||
Audio Standard | G.711u/G.711A 64Kbps | ||
Network Function: | |||
protocolo de red | TCP/IP,UDP,HTTP,HTTPS,DHCP、PPPoE、HTTP、HTTPS、RTSP、RTMP、DDNS、UPNP、ftp | ||
Connection Protocol | onvif, GB28181 (option) | ||
Preview numbers simultaneously | 4 people | ||
Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification | ||
Detección de movimiento | Set detection area, can set multi-level sensitivity | ||
Occlusion Alarm | Apoyo 1 area | ||
Privacy Mask | Apoyo 4 areas | ||
Schedule Linkage | Snapshot, email,alarm output | ||
Event Linkage | Capture, send Email , Alarm output | ||
Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm | ||
Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional | ||
Port: | |||
Puerto de red | RJ45 10M/100M network self-adaptation | ||
Audio | MIC Input | ||
Amplifier | Built-in amplifier board | ||
General: | |||
Fuente de alimentación | 12 V CC/PoE. (option) | ||
Water proof | N / A | ||
Temperatura de trabajo | -10°C ~ 50°C | ||
Humedad de trabajo | 0﹪~90﹪ |
