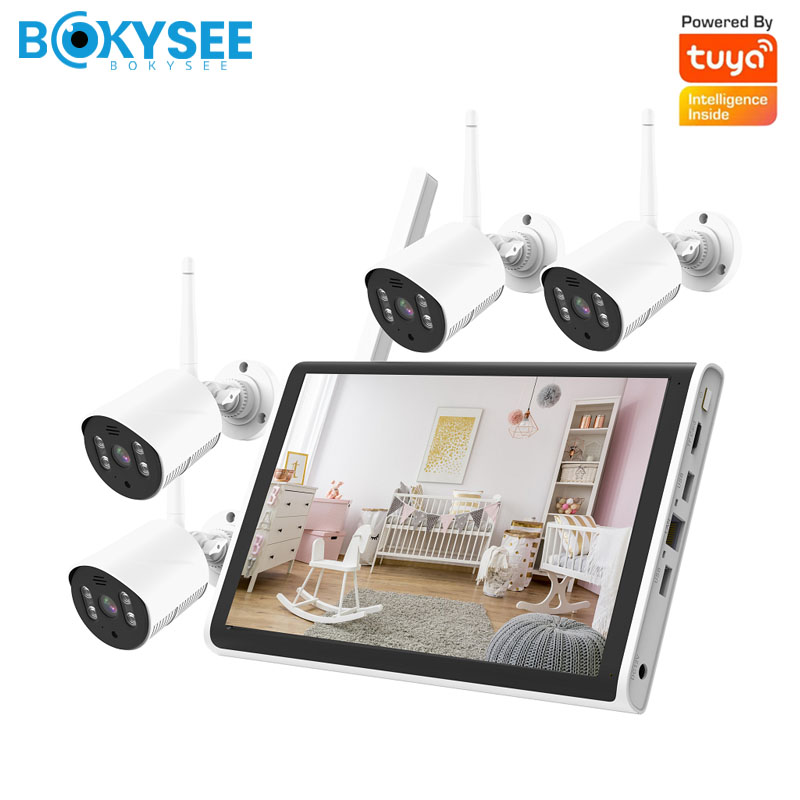

All in One 4CH Full HD 3MP Wireless NVR & IP CCTV Kit:
Includes 1 PCS 2MP WiFi NVR with Ultra -Thin 10.1 Inch LCD Monitor and 4 PCS 2MP WiFi Cameras
True Plug & Play for the 4CH WiFi Camera NVR Kit, Video cable is not required for camera’s working
The wireless camera & NVR with 2.4Ghz WiFi (IEEE 802.11 b/g/n)
Support to preview the video playback via the NVR directly
The WiFi cameras with motion detection and two-way audio
The WiFi cameras equipped with 3.6mm Lens 110° view angle and dual light mode for option, 4pcs Array LEDs+4pcs White LEDs, the IR work distance up to 25m(66ft)
With wired RJ45 Interface and WiFi (2.4GHz) Standard: IEEE 802.11 b/g/n for network connection.
With TF card (Max 128GB), 2.5 Inch HDD & cloud storage functionality for data storage.
Support ONVIF protocols and all kinds of mobile phone remote monitoring (IOS, Android).
The NVR with built-in cooling fan, brings the stable and high work performance
Power supply: DC 12V/ 1A for the camera, DC 5V/2A for the NVR, work temperature: -10℃－＋55℃
| WiFi NVR Specification | ||
| System | Main processor | XM8516D |
| screen | 10.1 inch 1280*800 | |
| Operating System | Embedded Linux | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4 | |
| Video input (IP) | 4*3MP | |
| Access bandwidth | 24Mbps | |
| Forwarding bandwidth | 24Mbps | |
| Video compression | H.265+ | |
| Display quality | Max 3MP | |
| Playback quality | 3MP | |
| Decode | 4*3MP | |
| VR | Unsupport | |
| Motion detection | Support(depend on camera) | |
| Audio | Audio compression | G.711A |
| Intercom | Unsupport | |
| Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 4*3MP | |
| Search mode | Search by Time/Calendar/Event/Channel | |
| Record storage | HDD、Network,SD card | |
| Backup mode | Network backup, USB hard disk, USB burner, | |
| External Interface |
Video output | 1ch HDMI HD output |
| Audio I/O | 0/0 | |
| Alarm I/O | 0/0 | |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI | |
| USB interface | 2*USB2.0 ports | |
| HDD | 1* SATA+1 SD card | |
| ESATA | No | |
| Serial interface | No | |
| Other | ONVIF | No |
| Power supply | 5V/2A Type-C | |
| Power Consumption | <10W(Without HDD) | |
| WiFi Camera Specification | ||
| To configure | Processor + sensor | XM530 Ai+2.0M 1/3″F37 CMOS sensor |
| Low illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Effective pixel | HD 1080P | |
| Lens | HD lens 3.6MM | |
| Infrared lamp | 8pcs X ￠5 Lamp beads | |
| Infrared distance | 150~200m | |
| Day&night | IR cut filter with auto switch | |
| General | setting | Saturation, brightness and contrast ; are adjustable through IE browser or client software. |
| temperature | -10℃-＋60℃ | |
| humidity | 10%-90% RH | |
| Power supply | DC12V 1A | |
| Consumption | MAX 6W | |
| Waterproof grade | IP66 | |
| Dimension | 221*120*92; | |
| Weight | 0.5 kg | |
